Low-Range Motorized Zoom Lens
HR-2016(E)
20x up to 160x Magnification (6x to 320x with adapters)
Patented Rotary Head Compatible
Compact Body with a wide range of adapters
Available in both Motorized and Manual versions
This high-performance zoom lens features compact body and high resolution image covers a total magnification range from 6-320x, while offering a large optical depth of field.
This lens can be used as handheld in contact or have a working distance over 135 mm depending on the adapter.
The automatic recognition and new magnetic mounting system allow quick change of adapters, including the world’s famous Hirox Rotary Head, covering a very wide range of applications
Standard | Low Mag | High Mag | |
---|---|---|---|
Magnification | 20x-160x | 6-48x | 40-320x |
Working Distance | 44 mm | 135 mm | 20 mm |
Horizontal View | 15.4-2.0 mm | 45.5-5.84 mm | 7.62-0.95 mm |
Depth-of-Field | 13.3-0.25 mm | 70.45-4.20 mm | 3.02-0.10 mm |
Adapter Recognition | Yes | Yes | Yes |
Motorization | Zoom / Rotary-Head |
Adapters

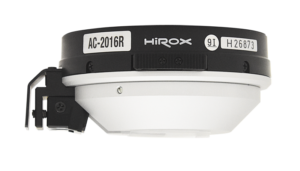

AC-2016R
![](https://hirox-europe.com/wp-content/uploads/2023/12/AC-2016R-e1592839940577-768x691.png)
HIROX Exclusive Adapter
Magnetic and Automatic Recognition

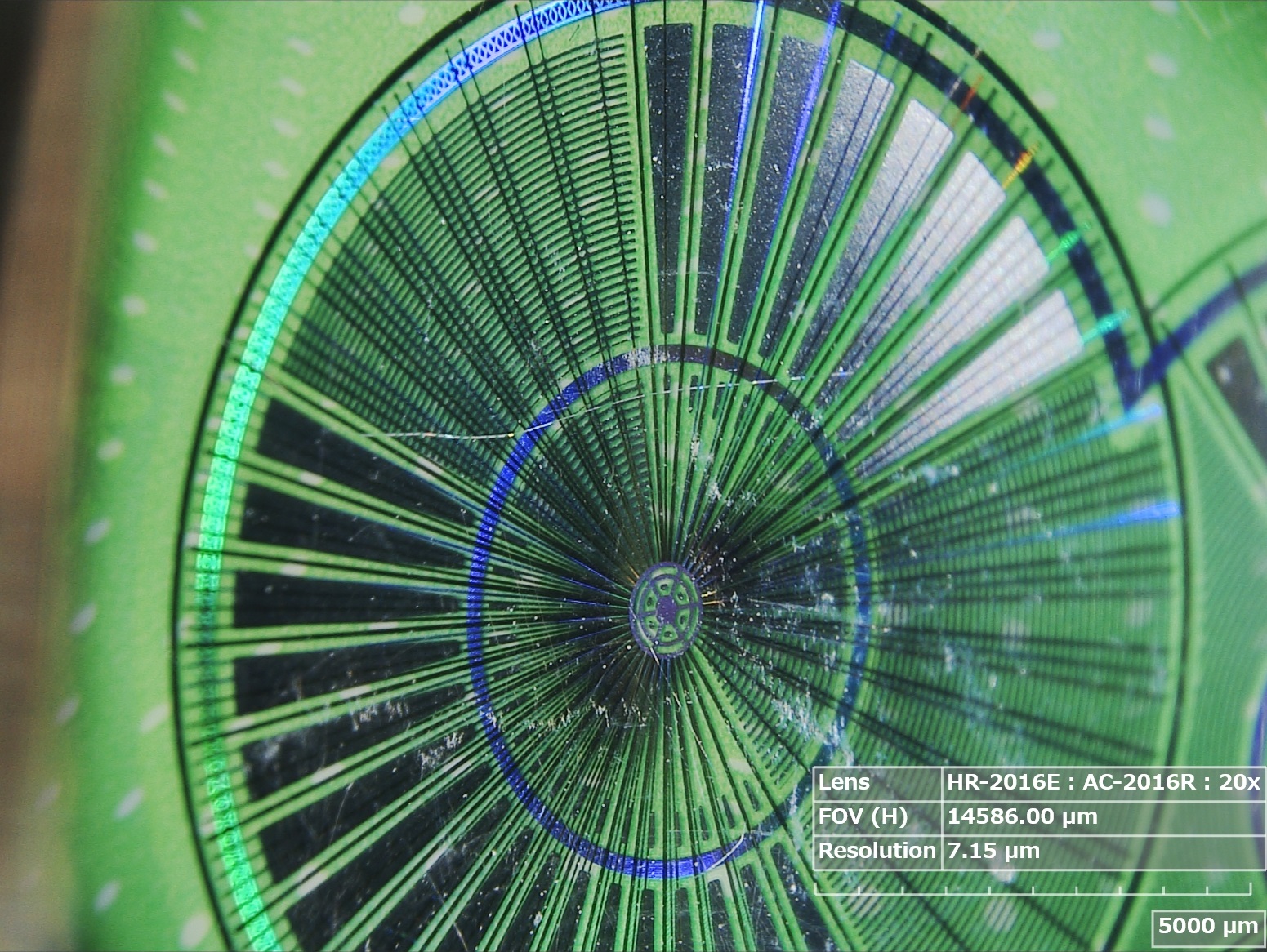

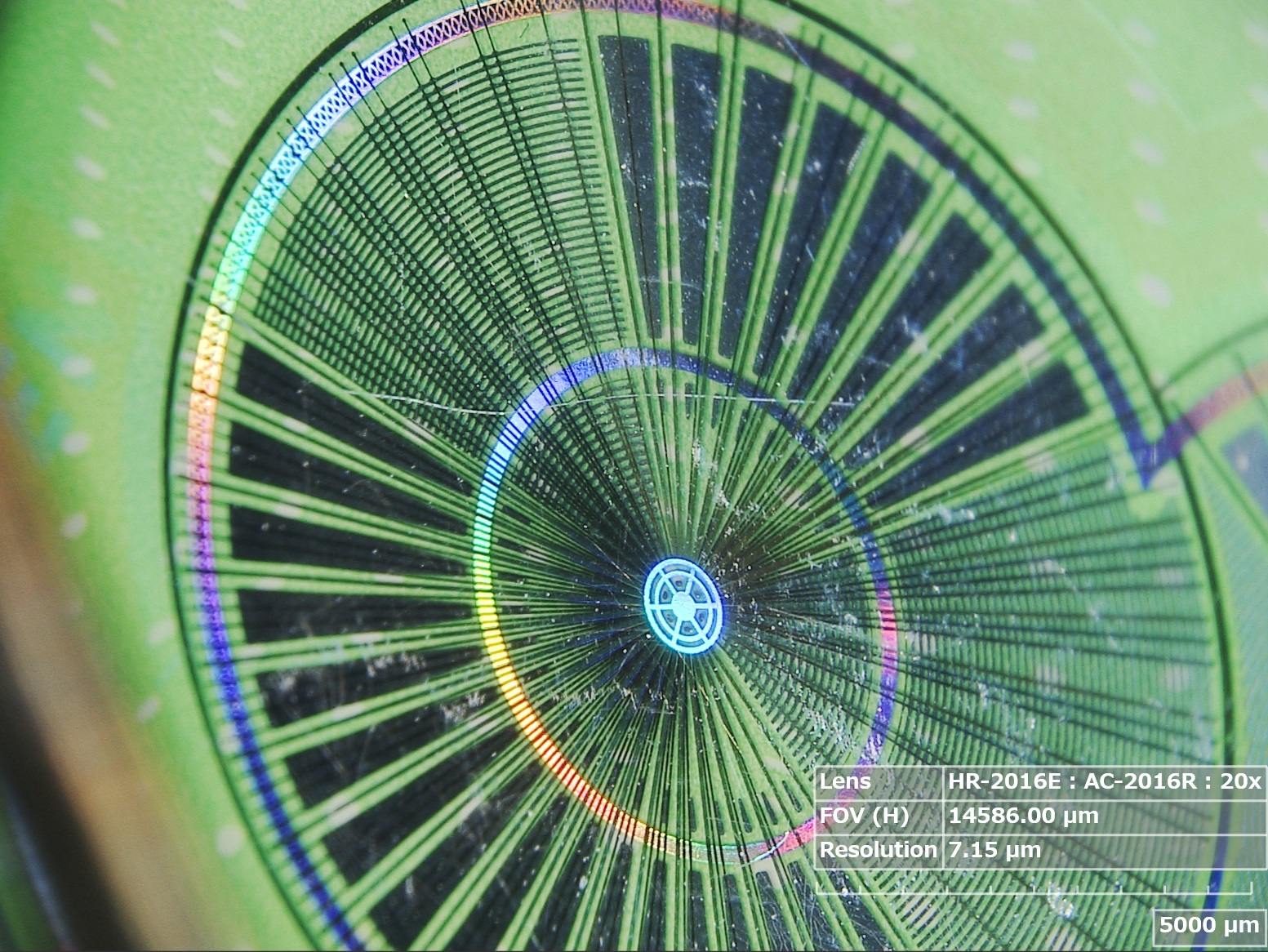

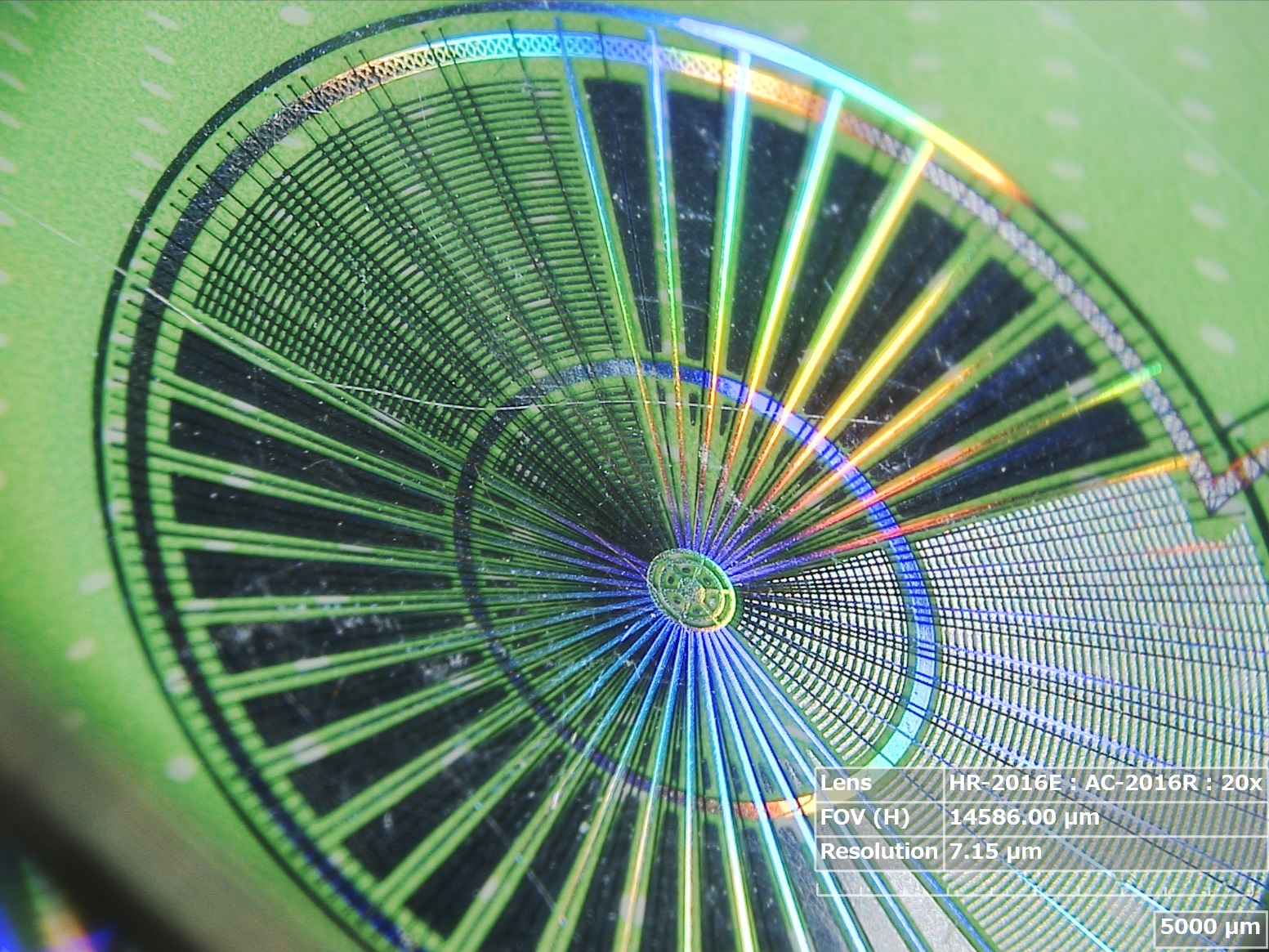

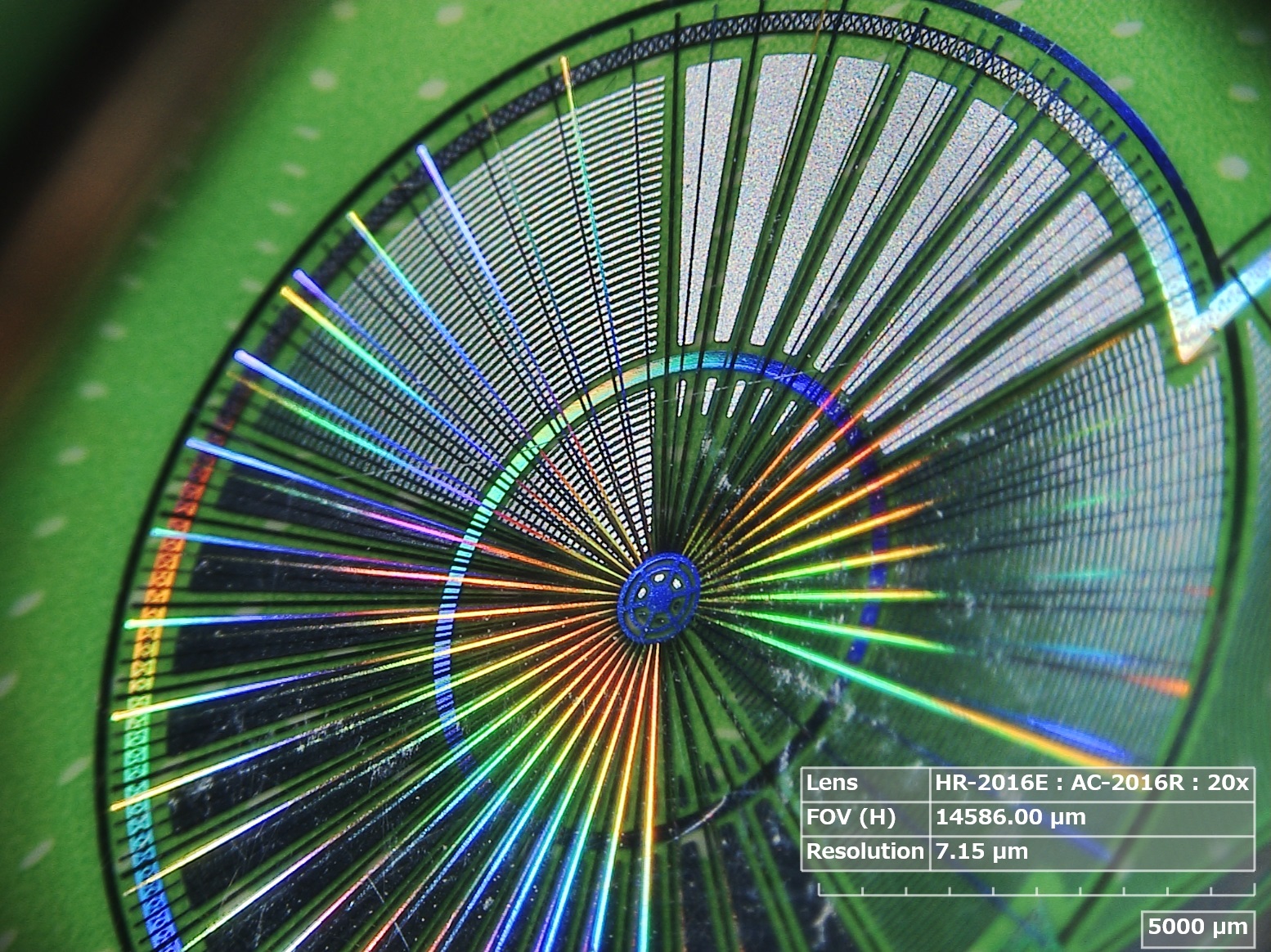

360° rotary inspection from 20x to 160x without contact or sample moving.
45 Degree angle view.
Working Distance: 11 mm
Lighting Method: Dark field vertical lighting
Diffuse lighting adapter included
![](https://hirox-europe.com/wp-content/uploads/2020/06/AC-2016S-e1592840011658-295x300.png)
Magnetic and Automatic Recognition
Lighting Method: Variable angle lighting
Working Distance: 0 mm
![](https://hirox-europe.com/wp-content/uploads/2020/06/AC-2016HI-e1592839969210-300x135.png)
Included with the lens
Magnetic and Automatic Recognition
Lighting Method: Dark field vertical lighting
Working Distance: 44 mm
![](https://hirox-europe.com/wp-content/uploads/2020/06/AC-2016VD-e1592840091415-300x263.png)
Magnetic and Automatic Recognition
Lighting Method: Diffuse Lighting
![](https://hirox-europe.com/wp-content/uploads/2020/06/AC-2016D-e1592840150318-300x297.png)
Magnetic and Automatic Recognition
Lighting Method: Diffuse Lighting
Working distance: 11mm
![](https://hirox-europe.com/wp-content/uploads/2020/06/AC-2016HI-e1592839969210-300x135.png)
Magnetic and Automatic Recognition
Magnification: 40x to 320x
Lighting Method: Dark field vertical lighting
Working Distance: 20 mm
![](https://hirox-europe.com/wp-content/uploads/2020/06/AC-2016HID-e1592840338132.png)
Diffuse Lighting Adapter for High Magnification (2x) Adapter
Magnetic and Automatic Recognition
Magnification: 40x to 320x
Lighting Method: Diffuse lighting
![](https://hirox-europe.com/wp-content/uploads/2020/06/AC-2016LOW-e1592840367489-300x174.png)

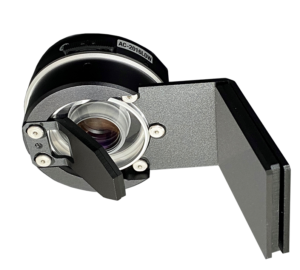

Low Magnification (0,3x) Adapter
Magnetic and Automatic Recognition
Magnification: 6x to 48x
Lighting Method: Dark field vertical lighting
Working distance: 135 mm
Field-of-View (H): 45.5 to 5.84 mm
![](https://hirox-europe.com/wp-content/uploads/2020/06/AC-2016P-e1592840417711-300x185.png)
Magnetic and Automatic Recognition
Lighting Method: Polarizing Filter Lighting
Working Distance: 31 mm
