High-Resolution Scanning Stands for 2D/3D Measurements & Gigapixel Panorama Stitching
We design and produce high-end microscopy scanning stands and stages for all kinds of applications such as cultural heritage conservation, research, quality control, lab inspection, electronics, material testing, metallography, security printing and more.
HIROX high-precision stands are compatible with the 3D digital microscope HRX-01 and white light confocal scanner NPS, providing the best scanning possibilities with high-resolution manual and motorized movements in XY and Z.
Level of accuracy up to 0.05µm steps and multiple features including backlighting, scanning area up to 1500mm for flat, 3D and large objects.
We offer customized solutions based on your requirements and our expertise. Feel free to get in touch with us today to discuss our solutions!

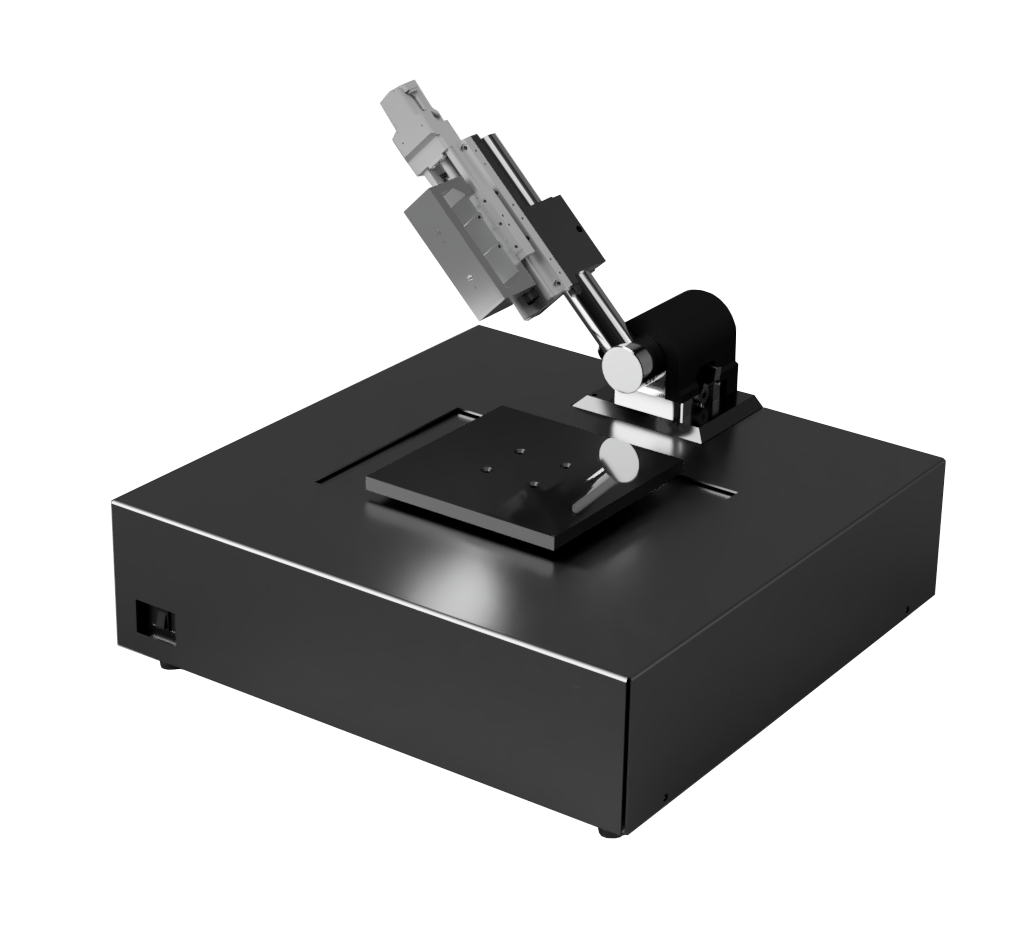

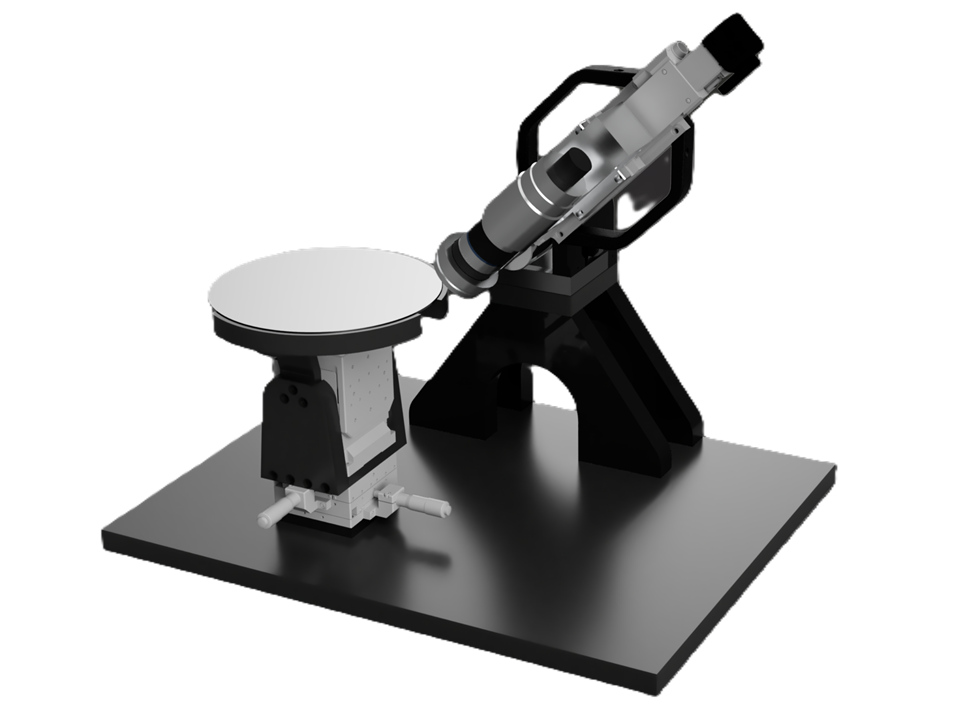

ST-AS-X | New Motorized XYZ Free Angle Stand
High-precision inclination* table stand with antivibration and full motorization for HIROX 3D digital microscope
Motorized XY axes: 100 x 100 mm
Step size: 0.1 micrometer
Sample plate: 200 x 200 mm
Suitable for NPS + HIROX setup
Compatible with motorized and manual Z axis blocks
Compatible with backlight transmitted illumination function
Also available with higher precision motorized XY stages, with 200 x 100 mm motorized XY stage as well as manual XY stage
*Possibility to tilt the Z pole to 135°!
Generate high quality automated image tiling and measurements.

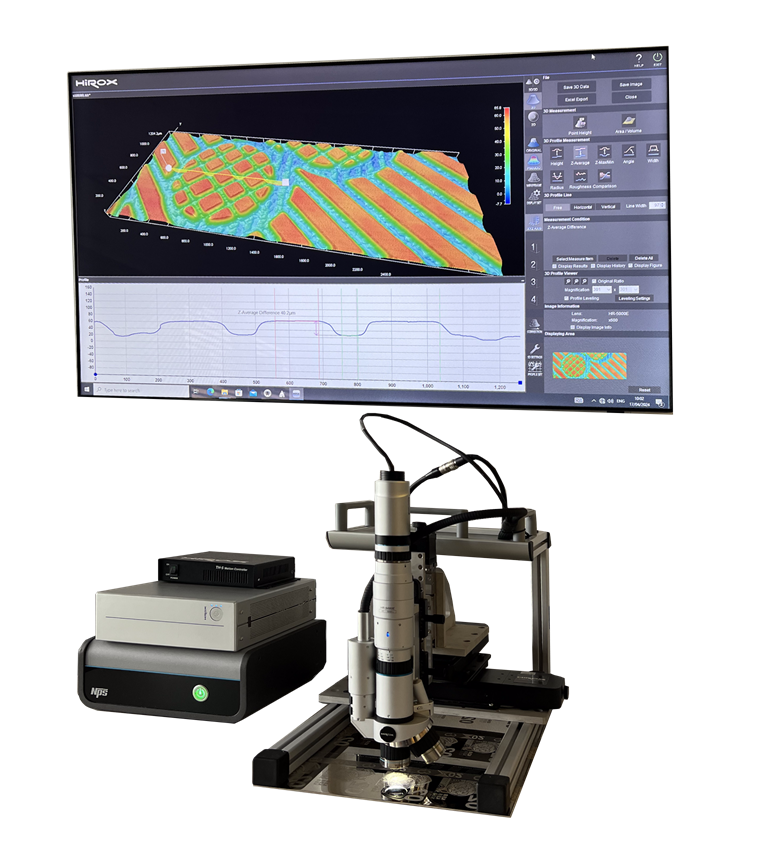

ST-S-X | New Motorized XYZ Straight Stand
High-precision table stand with antivibration and full motorization for HIROX 3D digital microscope and NPS Nano Point Scanner
Motorized XY axes: 100 x 100 mm
Step size: 0.1 micrometer
Sample plate: 200 x 200 mm
Suitable for NPS + HIROX setup
Compatible with motorized and manual Z axis blocks
Compatible with backlight transmitted illumination function
Also available with higher precision motorized XY stages, with 200 x 100 mm motorized XY stage as well as manual XY stage
Generate high quality automated image tiling and measurements.

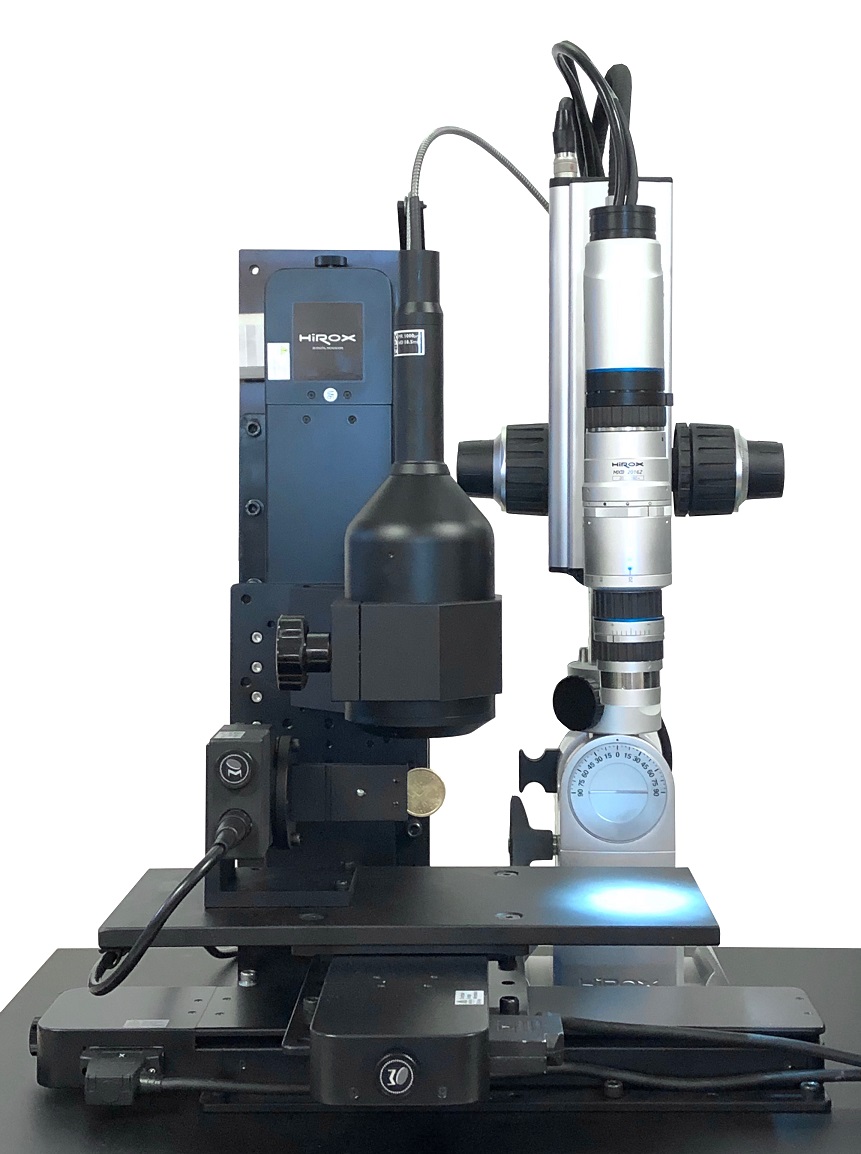

ST-AS | Motorized XYZ-Axis Free Angle Stand
Hirox created a completely new inclination stand featuring multiple integrated sensors and a high precision 80 mm motorized Z movement, providing the highest level of accuracy for various applications.
The XY stage can be manual or motorized (50x50mm or 100x100mm) for automatic XYZ acquisition. The stand also integrates built-in transmitted illumination, controlled by the HRX-01 software, increasing the observations
capabilities, as well as antivibration feet for improved stability. A rotary plate can be added to spin the sample in any direction!
Thanks to various sensors – including height and angle – the ST-AS stand truly supports the users, offering intelligent & stress-free observation.
For a maximum ease-of-use, all 4 axes (X-Y-Z-R) can be controlled with the wireless 3D-mouse controller

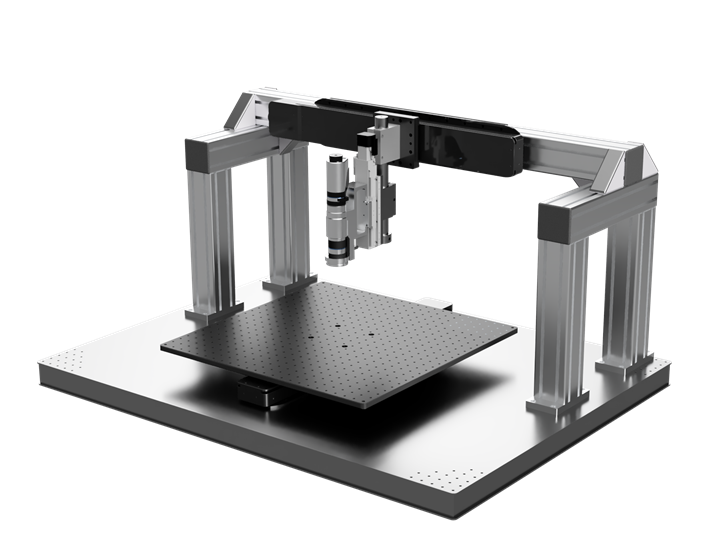

ST-B500 | Motorized Bridge Stand
Special-Made bridge stand setup for HIROX 3D digital microscope and NPS to inspect samples from above such as textiles, circuit boards/electronics, paintings and more. Designed to carry out 2D, multifocus and 3D image stitching on long distances.
Motorized X axis (top): 500 mm
Motorized Y axis (bottom): 500 mm
Step size: 0,2 micrometer
Base plate: 1200 x 900 x 58 mm
Sample plate: 600 x 600 mm
Length inside the bridge: no limit
NPS smallest height: 1 micrometer
Maximum load on Y axis: 15 kg
Maximum XY moving speed: 10 mm / sec
Compatible with FB-E motorized and manual Z axis block as well as “Z-only” axis
Also available with XY axes: 100, 300, 800, 1000 mm
SP-ST-BT | Gantry Stands
Special-Made gantry scanning stand setup for HIROX 3D digital microscope and NPS to inspect samples from above with sliders to reach area of interest. Perfect to suit a large table! Designed to carry out 2D, multifocus and 3D image stitching on long distances. Suitable for many samples such as textiles, paintings, flat objects.
Motorized X axis (top): 200 mm
Motorized Y axis (bottom): 200 mm
Step size: 0,2 micrometer
Length inside the bridge: no limit
NPS smallest height: 1 micrometer
Maximum XY moving speed: 10 mm / sec
Compatible with FB-E motorized and manual Z axis block as well as “Z-only” axis
Also available with XY axes: 100, 300, 500 800, 1000 mm

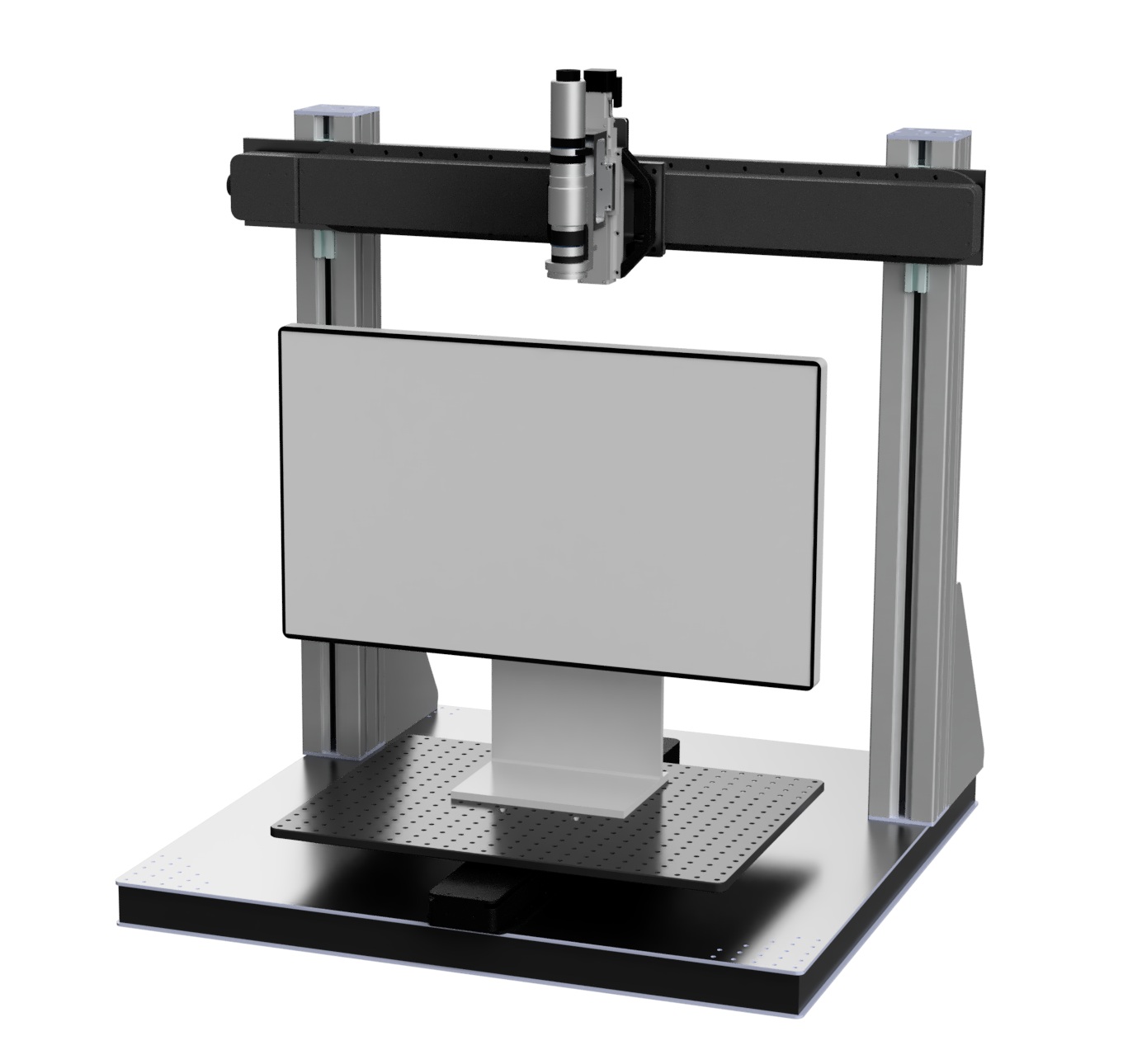

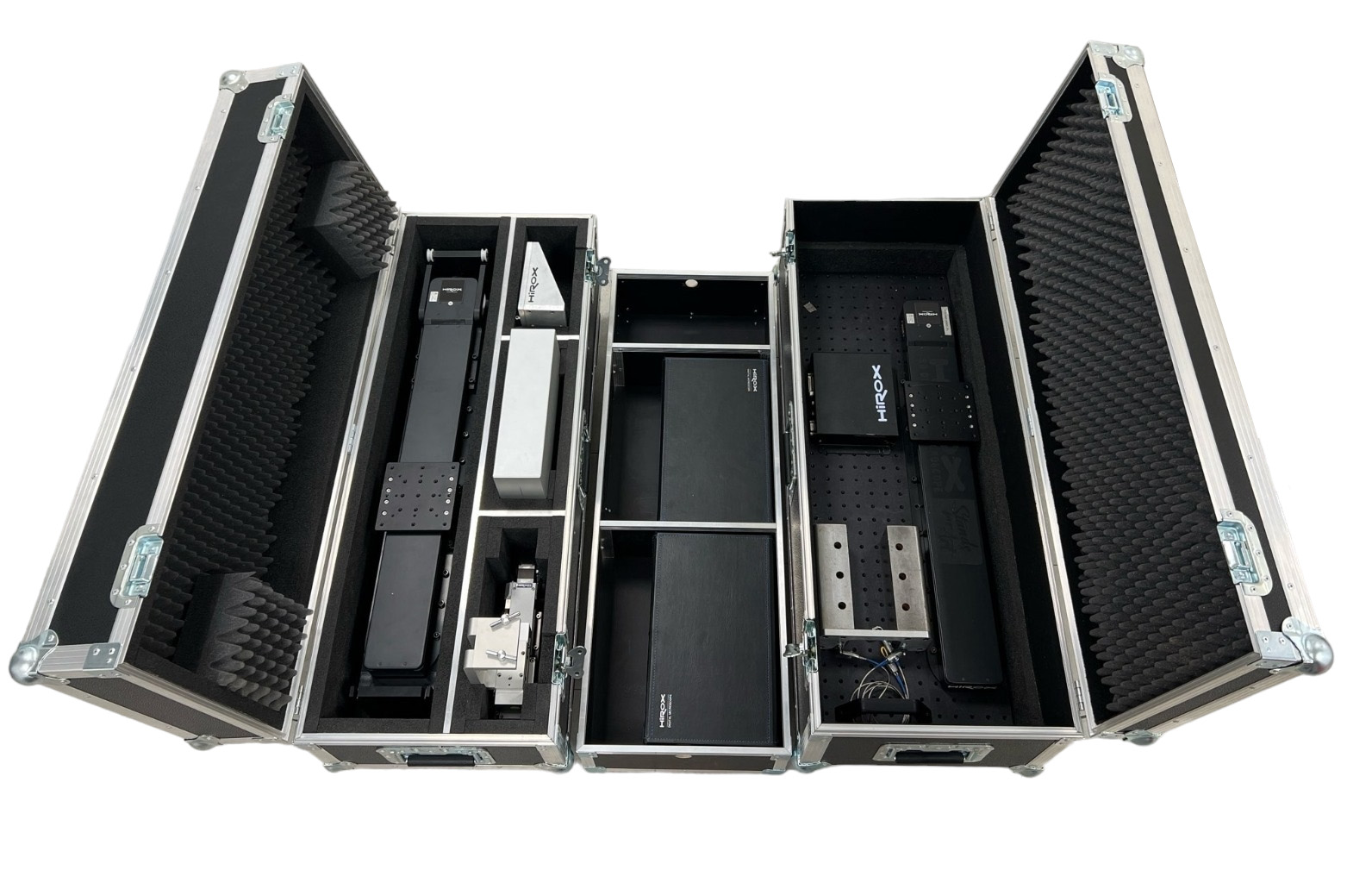

ST-T500 | Horizontal Auto T-Stand
Special-made horizontal motorized XYZ stand for HIROX 3D digital microscope for inspection of vertical objects such as paintings, walls, statues and more. Designed to carry out 2D, multifocus and 3D image stitching on long distances. Perfect setup for cultural heritage, reseach and museum.
Motorized X axis (bottom): 500 mm
Motorized Y axis (moving up and down): 500 mm
Step size: 0,2 micrometer
Maximum XY moving speed: 10 mm / sec
Compatible with FB-E motorized and manual Z-axis block as well as “Z-only axis”
Motorized Z axis: up to 80mm
Also available with XY axes: 100, 200, 300, 1000 mm

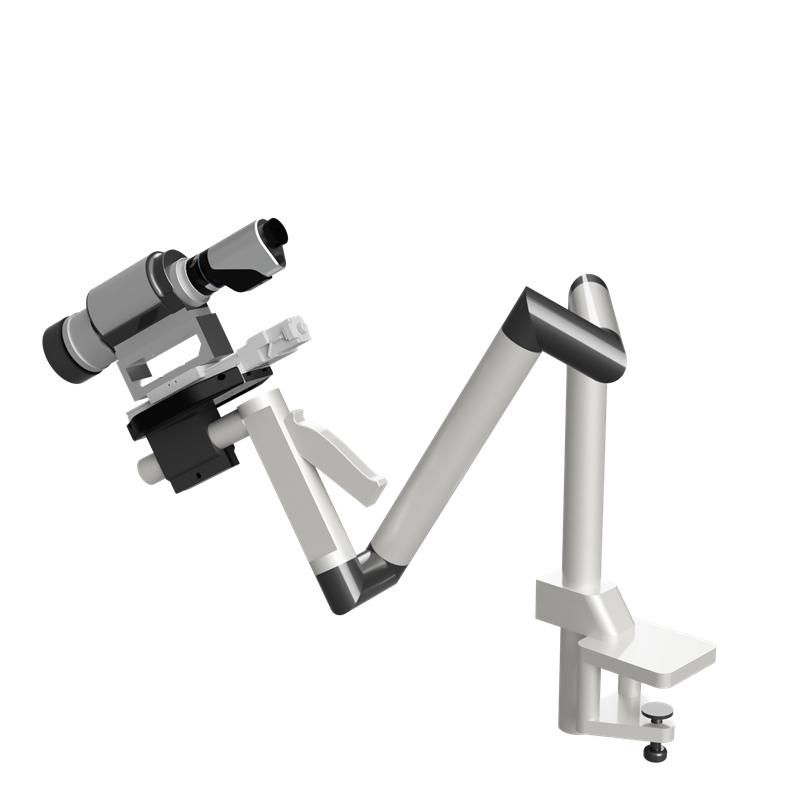

ST-HW-1 | Table Flexible Arm Stand
High-precision table stand with adjustable column and flexible arm for HIROX 3D digital microscope.
High quality and stable stand for inspection and 2D/3D measurement of 3D objects (horizontal, flat, vertical and inclined objects) such as archaeological artefacts, machine parts, bulky items and more.
Easy to assemble/disassemble/transport!
Includes manual XY movement with handle
Includes 32-mm pole for Hirox Z axis
ST-TS-W | Flexible Arm Stand on wheels
High-precision large Stand with adjustable horizontal Arm.
On wheels or attached to a table, it facilitates observations of large-size objects: L-shape or rotational ball-head extension for 360° free angle lens position. Adjustable columns for any alternative work. Carrying-case and more options.
Time to assemble/disassemble = one minute!
Working area: from 650 mm to 2000 mm
Max distance from Pillar center: 1500 mm
Weight: 50 kg
Auto Z-02 | Portable Contact Stand
High precision stand with motorized Z-axis specially designed for contact observation and measurement of plates (Intaglio for example) or cylinders. Setup for HIROX 3D digital microscope and security printing, material testing and more applications.
Motorized movements: 30mm with 0.05µm (50nm) steps
Including manual micrometric XY mouvements
It’s perfect to inspect and make 2D/3D measurements on flat or cylindrical surfaces, for examples plates and tubes.
It’s a stable & portable stand and is very easy to use.
Also available with motorized XY stage.
Stand Customization
We are constantly developing new solutions to answer the most demanding tasks.
Therefore, we would be happy to design and customize a stand for your project!
Please don’t hesitate to ask us any questions and we will do our best to find the ideal solution for you!
